ESA arm
The Geovent ESA arm is used to extract welding fumes, welding dust, grinding dust etc.
The ESA arm offers a range of features that makes it ideal for a number of situations. Its design ensures that it has a low pressure loss and is easy to position. The design elements includes extruded 6060 aluminum profile, injection molded joints in plastic as well as gas dampers.
The advantages to note of the ESA arm are:
- Easy positioning
- Low pressure loss
- Low weight
- Effortless maneuvering
- Durable hood with optimal capture velocity
The ESA arm is available in ø160mm or ø200mm and in lengths of 2 to 5 meters. An extender is installed on the 4 and 5 meter version. The ESA arm is available in lengths up to 8 meters when used in conjunction with an extension arm.
Recommended flow area
Hose dimension ø160 mm 800-1000 m3/h
Hose dimension ø200 mm 1000-2000 m3/h
ESA arm ø160 and ø200 mm

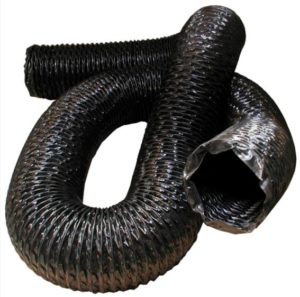

GeoFlex Weld is a light-weight PVC tape vent hose which is suitable for example. welding, air-conditioning, ventilation of tanks and cargo holds and more.
Temperature range from -10° to + 80° C (short 110° C.) Steel wire is integrated in the hose.
