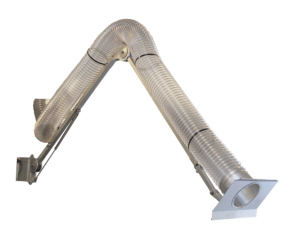

GEOVENT ASX arm
GEOVENT ASX arm are used for the extraction of flammable media such as. solvents, various types of dust from food and pharmaceutical processes and vapors from fuels and solvents.
The arm has external support arms built with three adjustable joint and 2 swivel so you can easily achieve the required suction position. ASX arm wall bracket is 270° rotatable. The funnel is made of epoxy coated lightweight aluminum and is available in ø80 mm, ø100 mm, ø125 mm, ø160 mm or ø200 mm diameter.
The ASX arms are available in lengths 2.0 – 3.0 and 4.0 m, but can be using an extension arm extended up to 8.0 m.
The suction hose is GeoFlex PUR, which is a lightweight PU hose, which is suitable for example. Air-conditioning, ventilation of tanks and cargo holds and more. Temperature resistance from -40 ° to + 90° C – briefly 125°C. The hose is with spring steel wire. The hose is antistatic and therefore, it is suitable for ATEX use.
The ASX arm from Geovent has been approved after
ATEX-direktiv 2014/34/EU earlier 94/9/EC: EX II 2G T5 / EX II 2D 100°C
ASX armen from Geovent has been approved after ATEX-direktiv
ASX stainless extraction arm with external articulated arm and gas spring. Hood is made in stainless steel plate. The arm is max 3 meters.
Stainless ASX arm from Geovent is approved according to the ATEX directive.
